4.5. All PSD methodsΒΆ

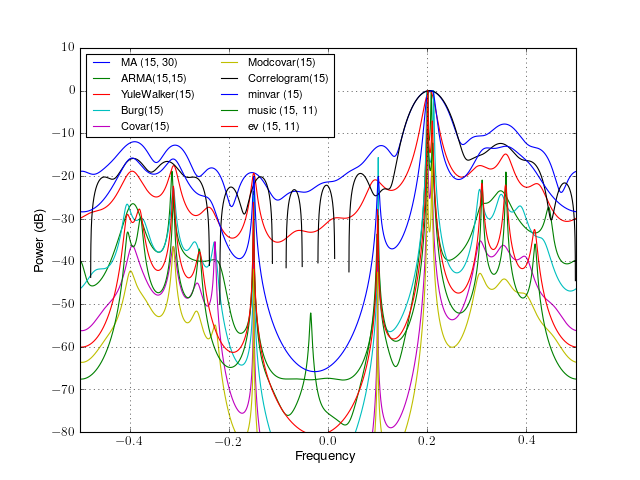

This example is used to generate the front image. It shows how to use the different PSD classes that can be found in Spectrum.

from spectrum import *
from pylab import legend, ylim
data = marple_data
norm = True
sides = 'centerdc'

# MA method
p = pma(marple_data, 15, 30, NFFT=4096)
p(); p.plot(label='MA (15, 30)', norm=norm, sides=sides)

# ARMA method
p = parma(marple_data, 15, 15, 30, NFFT=4096)
p(); p.plot(label='ARMA(15,15)', norm=norm, sides=sides)

# yulewalker
p = pyule(data, 15, norm='biased', NFFT=4096)
p(); p.plot(label='YuleWalker(15)', norm=norm, sides=sides)

#burg method
p = pburg(data, order=15, NFFT=4096)
p(); p.plot(label='Burg(15)', norm=norm, sides=sides)

#covar method
p = pcovar(data, 15, NFFT=4096)
p(); p.plot(label='Covar(15)', norm=norm, sides=sides)

#modcovar method
p = pmodcovar(data, 15, NFFT=4096)
p(); p.plot(label='Modcovar(15)', norm=norm, sides=sides)

# correlagram
p = pcorrelogram(data, lag=15, NFFT=4096)
p(); p.plot(label='Correlogram(15)', norm=norm, sides=sides)

#minvar
p = pminvar(data, 15, NFFT=4096)
p(); p.plot(label='minvar (15)', norm=norm, sides=sides)

#music
p = pmusic(data, 15, 11, NFFT=4096)
p(); p.plot(label='music (15, 11)', norm=norm, sides=sides)

#ev
p = pev(data, 15, 11, NFFT=4096)
p(); p.plot(label='ev (15, 11)', norm=norm, sides=sides)


legend(loc='upper left', prop={'size':10}, ncol=2)
ylim([-80,10])

[hires.png, pdf]

../_images/2693e0e78e.png
